Exporting Diagrams as Image
Papyrus supplies two different ways of diagram export. The first is exporting all diagrams of a common model and the second one is exporting a single diagram.
First, navigate to the model in the model-gen folder. To export all diagrams of this model use right-click or Shift + F10 on the model to open the context menu and click Export All Diagrams....

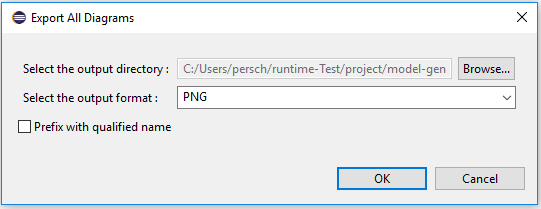

This will open a dialog where you can set the preferred output folder and image format.

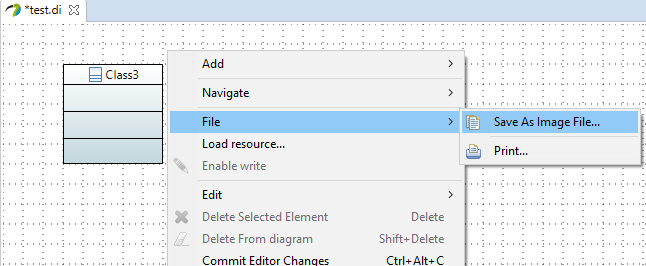

To export a single diagram open it in the graphical editor. Open the context menu using right-clicking or Shift + F10 and select File -> Save as Image File....

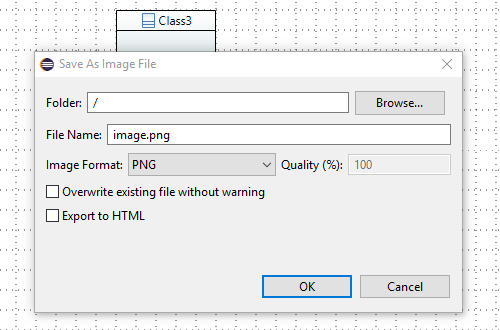

This will open a dialog where you can set the preferred file name, output folder and image format.
