scheduler

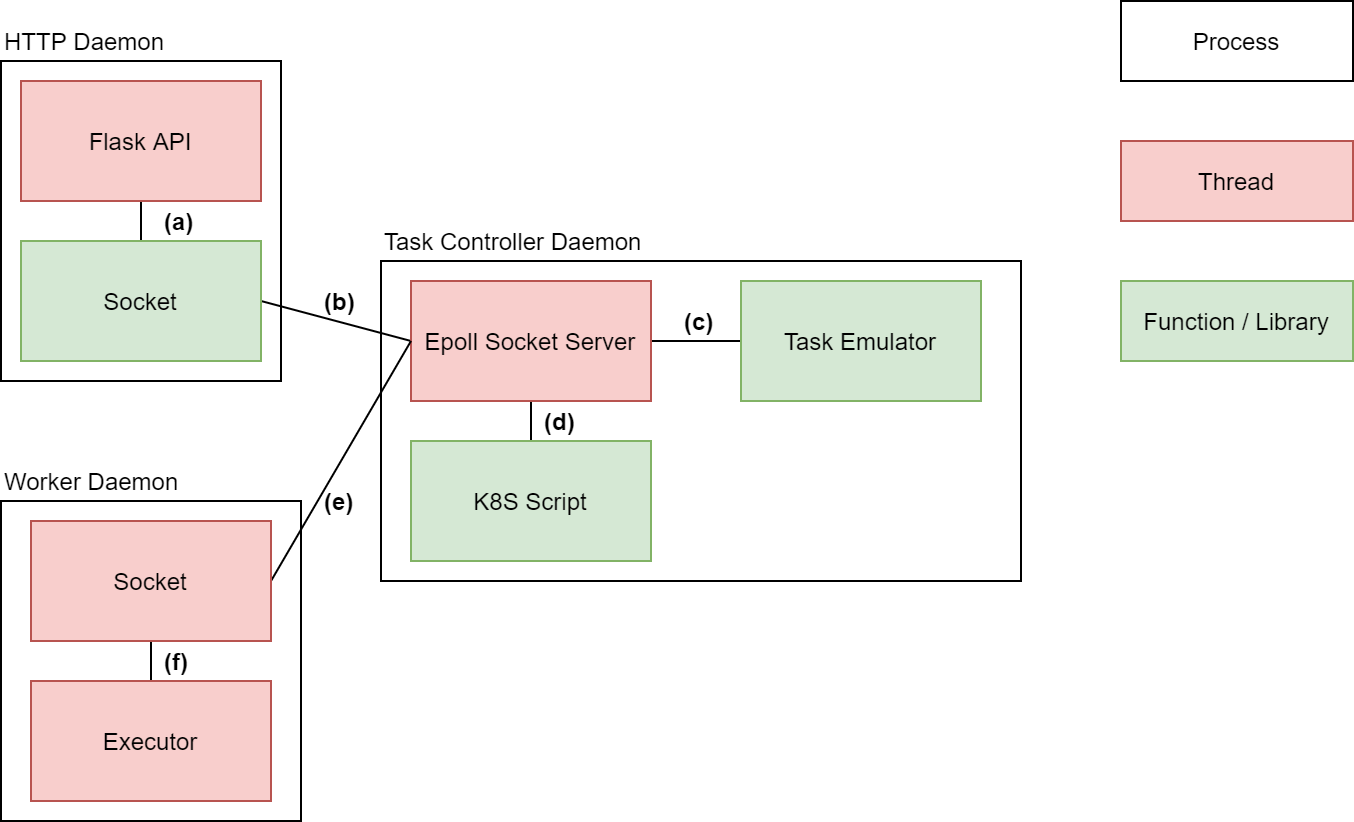

Architecture

• (a): Flask API is a simple http API. It would build a socket connection with Status Controller after each valid request.
• (b): A socket connection, which is monitored by epoll.
• (c): When receive a new request from HTTP Daemon, call Task Emulator to score every task, and generate a Task ID. Then, store task into the message queue.
• (d): Restart or launch workers
• (e): Two static connections.
  • The first one (task receiver) receives the tasks from the task controller.
  • The second one (result emitter) sends the results to the task controller.
  • We would use queue as communication method between threads, which are the task receiver, result emitter and executors.
  • A connection could be an unix domain socket, a http socket or any kind of IPC. If worker daemon is running on an independent host, it must be a http socket.
• (f): Subscribe the message queue.

Philosophy

• Why not use http in all scenraio?
  I'm not sure it is possible or not and I have never seen people monitor http directly!? In general, we monitor socket with epoll.
• Why not use K8S official library directly?
  Our scenraio is very simple, so spending time on learning a novel library is not very helpful.

HTTP Daemon

Recieve all request and forward to States Controller Daemon.

States Controller Daemon

• Socket Client
  • Send task information to workers.
• Epoll: monitor each fd of socket client
• K8S script: dynamically manage worker node
• Time each task. If the task executes too long, send cancel command to workers. If the task fails, forward the information to "retry queue".

Worker Daemon

Each worker is responsible for one type task, because it's the K8S' philosphy. When a pod is broken, just delete it. When the service is overloading, create more and more pods. That's "scale up". We don't pay attention on solving the proble with a very correct answer at the moment.

• Socket Server
• Execute task
  • Launch as a process
  • Execute in a sandbox!?

Others

• Task Class

  • Evaluator: evaluate a task and determine which worker is the executor
  • Generate Task ID
  • Choose Task

• Task Types

  • pending
  • running
    • network fail
    • internal fail (unknown)
  • finish
    • runtime error (from running task)
    • format error (from format checker)
    • success

• Error Handler

  • format checker check the scipt output in scripts
  • exception handler

Ongoing

• Determine what the exception is & what the error code is
• Use inspect to record the process information
• Use epoll & socket to build the communication between status controller daemon & worker daemon

Maybe???

• Use official k8s python library to manage workerkubernetes-client/python

Usage

Lanuch

Execute the following command, and then it would launch a production and debug http server, whose port are 5000 and 5001 respectively.

docker-compose up

API

Note that code must be encoded with urllib.parse.quote_plus, and our testsuite is part of another project, if you don't want implement testsuite by yourself, just try (SimpleComicCrawler)

• http://localhost/execute?code=SOURCE_CODE
